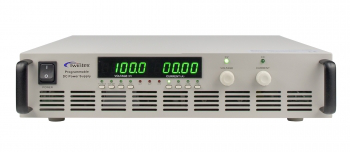

產品特點
-
最大輸出功率2400W
-
最大電壓從6V到600V，最大電流從2A到200A
-
定電壓和定電流操作，自動CV / CC切換
-
標準2U 19英寸機箱
-
4 1/2位LED電壓和電流顯示
-
恆溫控制風扇，噪音低
-
採用PWM技術，效率高，穩定性高
-
低波紋，高穩定性
-
前面板操作：預設電壓和電流，輸出ON / OFF
-
多重保護：OVP，OTP，UVP和電流限制保護
-
標準接口：RS232，RS485和RS422
-
支援ModBus-RTU命令
|
型號 |
PCL2400-12 |
PCL2400-20 |
PCL2400-30 |
PCL2400-40 |
PCL2400-60 |
PCL2400-1H |
|
Voltage |
0~12V |
0~20V |
0~30V |
0~40V |
0~60V |
0~100V |
|
Current |
0~200A |
0~120A |
0~80A |
0~60A |
0~40A |
0~24A |
|
型號 |
PCL2400-150 |
PCL2400-2H |
PCL2400-3H |
PCL2400-4H |
PCL2400-5H |
PCL2400-6H |
|
Voltage |
0~150V |
0~200V |
0~300V |
0~400V |
0~500V |
0~600V |
|
Current |
0~16A |
0~12A |
0~8A |
0~6A |
0~4.8A |
0~4A |
|
Model |
PCL2400-12 |
PCL2400-20 |
PCL2400-30 |
PCL2400-40 |
PCL2400-60 |
PCL2400-1H |
|
|
Output |
|||||||
|
Rated output |
Voltage |
0~12V |
0~20V |
0~30V |
0~40V |
0~60V |
0~100V |
|
Current |
0~200A |
0~120A |
0~80A |
0~60A |
0~40A |
0~24A |
|
|
OVP |
0~12.6V |
0~21V |
0~31.5V |
0~42V |
0~63V |
0~105V |
|
|
Load regulation |
CV≤0.1%+2LSB, CC≤0.1%+2LSB |
||||||
|
Line regulation |
CV≤0.1%+2LSB, CC≤0.1%+2LSB |
||||||
|
Ripple & Noise |
≤100mV |
≤100mV |
≤100mV |
≤100mV |
≤100mV |
≤100mV |
|
|
Programming resolution |
OVP |
0.01V |
0.01V |
0.01V |
0.01V |
0.01V |
0.1V |
|
Voltage |
0.01V |
0.01V |
0.01V |
0.01V |
0.01V |
0.1V |
|
|
Current |
0.1A |
0.1A |
0.01A |
0.01A |
0.01A |
0.01A |
|
|
Display resolution |
Voltage |
0.01V |
0.01V |
0.01V |
0.01V |
0.01V |
0.1V |
|
Current |
0.1A |
0.1A |
0.01A |
0.01A |
0.01A |
0.01A |
|
|
Display accuracy |
Voltage≤0.2%+2LSB, Current ≤0.5%+2LSB |
||||||
|
Programming |
|||||||
|
Interface |
RS232, RS485 and RS422 |
||||||
|
Commands |
ModBus-RTU |
||||||
|
Protection |
|||||||
|
Over Voltage Protection (O.V.P.) |
Built-in OVP protection with limit of 105% rated output voltage. The output will be shut down when OVP is activated. |
||||||
|
Over Temperature Protection (O.T.P.) |
Built-in OTP protection with heat sink temperature limit of 50℃±5%. The output will be shut down when OTP is activated. |
||||||
|
Under Voltage Protection (U.V.P.) |
Built-in UVP protection with limit of 165Vac. The output will be shut down when UVP is activated. |
||||||
|
General |
|||||||
|
Cooling method |
Cooling fan |
||||||
|
Operating environment |
0℃~40℃, 10%~80%RH |
||||||
|
Storage environment |
-20℃~70℃, 10%~90%RH |
||||||
|
Power source |
AC220V±10%, 47~63Hz |
||||||
|
Weight |
11~14kg |
||||||
|
Dimensions |
482Wx88Hx460D mm |
||||||
|
Model |
PCL2400-150 |
PCL2400-2H |
PCL2400-3H |
PCL2400-4H |
PCL2400-5H |
PCL2400-6H |
|
|
Output |
|||||||
|
Rated output |
Voltage |
0~150V |
0~200V |
0~300V |
0~400V |
0~500V |
0~600V |
|
Current |
0~16A |
0~12A |
0~8A |
0~6A |
0~4.8A |
0~4A |
|
|
OVP |
0~157.5V |
0~210V |
0~315V |
0~420V |
0~525V |
0~630V |
|
|
Load regulation |
CV≤0.1%+2LSB, CC≤0.1%+2LSB |
||||||
|
Line regulation |
CV≤0.1%+2LSB, CC≤0.1%+2LSB |
||||||
|
Ripple & Noise |
≤100mV |
≤100mV |
≤200mV |
≤200mV |
≤200mV |
≤200mV |
|
|
Programming resolution |
OVP |
0.1V |
0.1V |
0.1V |
0.1V |
0.1V |
0.1V |
|
Voltage |
0.1V |
0.1V |
0.1V |
0.1V |
0.1V |
0.1V |
|
|
Current |
0.01A |
0.01A |
0.001A |
0.001A |
0.001A |
0.001A |
|
|
Display resolution |
Voltage |
0.1V |
0.1V |
0.1V |
0.1V |
0.1V |
0.1V |
|
Current |
0.01A |
0.01A |
0.001A |
0.001A |
0.001A |
0.001A |
|
|
Display accuracy |
Voltage≤0.2%+2LSB, Current ≤0.5%+2LSB |
||||||
|
Programming |
|||||||
|
Interface |
RS232, RS485 and RS422 |
||||||
|
Commands |
ModBus-RTU |
||||||
|
Protection |
|||||||
|
Over Voltage Protection (O.V.P.) |
Built-in OVP protection with limit of 105% rated output voltage. The output will be shut down when OVP is activated. |
||||||
|
Over Temperature Protection (O.T.P.) |
Built-in OTP protection with heat sink temperature limit of 50℃±5%. The output will be shut down when OTP is activated. |
||||||
|
Under Voltage Protection (U.V.P.) |
Built-in UVP protection with limit of 165Vac. The output will be shut down when UVP is activated. |
||||||
|
General |
|||||||
|
Cooling method |
Cooling fan |
||||||
|
Operating environment |
0℃~40℃, 10%~80%RH |
||||||
|
Storage environment |
-20℃~70℃, 10%~90%RH |
||||||
|
Power source |
AC220V±10%, 47~63Hz |
||||||
|
Weight |
11~14kg |
||||||
|
Dimensions |
482Wx88Hx460D mm |
||||||
Specifications are subject to change without prior notice.
