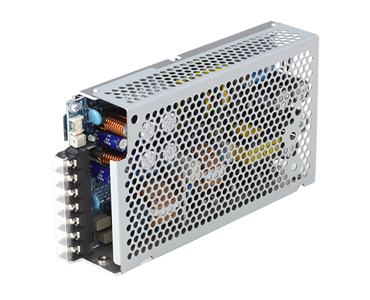

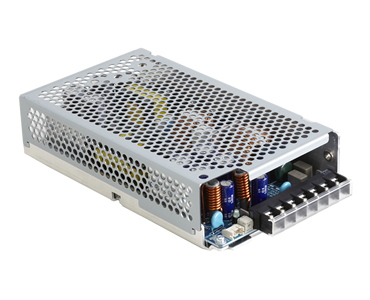

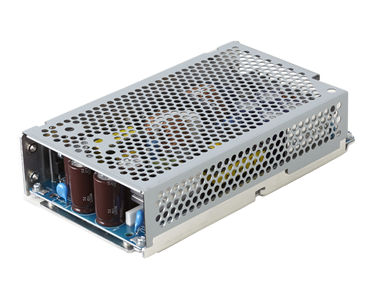

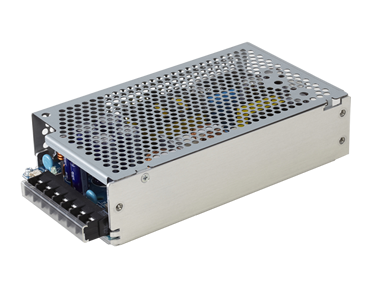

【Daitron】
醫療標準認證
(300W)
型號： PFS300A
描述： 低漣波低雜訊輕量化日本原裝進口安規認證UL/EN60601-1,60950-1

產品特色

  • Output Power:300W
  • Output Voltage (DC):12V, 15V, 24V, 30V, 48V
  • Ripple Noise:10mVp-p
  • Reinforced insulation
  • Dimension (W x H x D):110.8 x 46.8 x 193 mm * without terminal block
  • Weight:950g
  • Leakage Current:60μA ＠100Vac, 60Hz
  • Cooling System:Forced air convection by external fan
  • Safety Standard:60950-1, 60601-1, RoHS Compliant, Halogen Free (PCB)

產品規格



Model Number PFS300A-12 PFS300A-15 PFS300A-24 PFS300A-30 PFS300A-48
Input Input Voltage Range Rating 100-240Vac Single Phase * Range : 85Vac to 264Vac
Frequency Range Rating : 50/60Hz, * Range : 47Hz to 63Hz
Input Current 100VAC/200VAC  * 1 4.0A / 2.0A（Io=100%)
Efficiency 100VAC/200VAC  * 1 80% / 83% 81% / 85% 83% / 87% 84% / 88%
Inrush Current 100VAC / 200VAC  * 1 20A / 40A * When it operates under cold start
Leakage Current 60uA @ 100Vac, 60Hz / 150uA @ 240Vac, 60Hz / 200uA @ 264V, 60Hz
Power Factor 100VAC/200VAC 0.98 / 0.93
Model Number PFS300A-12 PFS300A-15 PFS300A-24 PFS300A-30 PFS300A-48
Output DC Output Voltage 12V 15V 24V 30V 48V
Output Current 25A 20A 12.5A 10A 6.3A
Maximum Output Power 300W 302.4W
Line Regulation / Load Regulation [Max] 48mV / 96mV 60mV / 120mV 96mV / 150mV 120mV / 188mV 192mV / 300mV
Ripple Noise  * 2 10mVp-p
Model Number PFS300A-12 PFS300A-15 PFS300A-24 PFS300A-30 PFS300A-48
Other Feature OCP  * 3 > 110% (Shut down output)
OVP  * 3 > 115% (Shut down output)
Remote Sensing Available
Remote Control Available
Operation Indicator LED lighting
Model Number PFS300A-12 PFS300A-15 PFS300A-24 PFS300A-30 PFS300A-48
Mechanical Cooling System Forced air convection by external fan
Size (W x H x D) 110.8 x 46.8 x 193 mm / 4.36 x 1.84" x 7.60" inch * Without terminal stand
Weight 950 g
Input & Output Terminal / Signal Terminal Screw terminal / Connector
Model Number PFS300A-12 PFS300A-15 PFS300A-24 PFS300A-30 PFS300A-48
Others Noise Immunity EN61000-4-2, -3, -4, -5, -6, -8, -11
Conduction Noise EN55022-B, FCC-B, VCCI-B
Safety Standard UL60601-1, EN60601-1, CSA-C22.2 NO. 601.1-M90 UL60950-1 , CSA-C22.2, NO. 60950-1, EN60950-1
CE Marking Low voltage directive
Model Number PFS300A-12 PFS300A-15 PFS300A-24 PFS300A-30 PFS300A-48
Environmental Condition Operating Temperature / Humidity - 10 degree C to + 60 degree C * With output / 30%RH to 90% RH * Non Condensing
Storage Temperature / Humidity - 20 degree C to + 85 degree C / 10%RH to 95% RH * Non Condensing
Vibration Resistance 19.6m/s2 10 to 55Hz 1minute Period 1hour for each X,Y, Z direction
Shock Resistance < 196.1m/s2 11ms 1 time for each X, Y, Z direction
Model Number PFS300A-12 PFS300A-15 PFS300A-24 PFS300A-30 PFS300A-48
Isolation Isolation Voltage
Input. Output : AC4KV for 1min Cut off current 20mA * Under normal temp & humidity condition
Input. FG : AC2KV for 1min Cut off current 20mA * Under normal temp & humidity condition
Output. FG : AC500V for 1min Cut off current 20mA * Under normal temp & humidity condition
Isolation Resistance Input. Output , Input.FG, Output.FG DC500V >100M ohm



以上參數如有變化不再另行通知, 請以原廠出廠報告為準。
